Introduction
The WEM3080T is a bi-directional, DIN rail-mounted, three-phase Wi-Fi energy meter designed for monitoring 3-phase 4-wire systems (WYE connection).
If you need to monitor a 3-phase 3-wire system (Delta connection), please choose the WEM3080TD instead.
3 phase energy monitor
It is a highly integrated 3 phase energy meter with a Wi-Fi module embedded, which measures the voltage, current, active power(bi-directional), forward energy, and reverse energy of each phase.
It can report the energy data to the cloud service(IAMMETER or your own cloud service ) by Wi-Fi.
3 phase power monitoring system
Key Features
Bi-directional: both forward energy (from-grid) and reverse energy (to-grid) in each phase of this 3 phase energy monitor can be monitored simultaneously. This feature is especially useful in solar PV monitoring.
Versatile and suitable for various types of electrical systems(single phase ,split phase ,3 phase ).
Net energy metering: this 3 phase energy meter online supports both normal metering mode and net energy metering mode.
Cloud service&& APP: Provide IAMMETER-Cloud service which is a very powerful system in solar PV monitoring and energy consumption management.
Open source platform : This 3 phase electricity usage monitor can be easily integrated into nearly all famous platforms, such as Home Assistant,NodeRED, Openhab,Domoticz,IObroker.
Easy integration into the system of customer: this 3 phase electricity monitor can be configured to upload data directly to the customer`s own server(by HTTP, TLS,TCP or MQTT).
Support Modbus TCP/RTU: Modbus is common protocol that used in industrial system such as ICS, DCS, SCADA.
Measure both active power and reactive power(KVAR,KVARH)

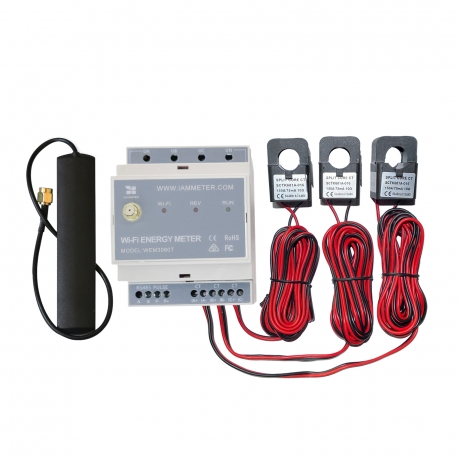

Standard Package
Applications
Solar PV System Monitoring
Electricity Usage Monitor/ Energy Monitoring System
Home Automation
- Solar PV System
Exported/imported energy vs solar inverter production
Electricity bill and solar PV system income statistics
System and APP Demo
OVERVIEW OF SOLAR PV SYSTEM
overview page of solar pv monitoring system
BILLING AND INCOME REPORT
This report shows both total Grid Consumption & Electricity Bill, total Energy Exported & Income, and Balance, on daily/monthly/yearly basis.
analyze your grid bill and solar pv yield energy income
TOTAL SAVINGS REPORT
This report shows Direct Self-use Rate and Total Saving(Money saved by consuming direct self-use energy instead of grid energy + income of exported energy to grid) of your solar PV system.
solar pv system insight report
Monitor your solar PV system with a smart WiFi Energy monitor
Part 1: Insight into Your Photovoltaic System
Part 2: Optimizing Your Photovoltaic System
Monitor the solar PV in IAMMETER-1
Using a 3 phase energy meter wifi for Solar PV and Grid Consumption in a Split-Phase System
- Electricity Usage Monitor/ Energy Monitoring System
Real-time monitoring of electricity usage
Electricity bill calculation on houly/daily/monthly basis
System and APP Demo
OVERVIEW OF THREE PHASE ELECTRICITY SYSTEM
3 phase energy monitor view
LIST OF POWER CONSUMPTION AND BILL
analyze the bill and energy consumption in 3 phase energy monitoring system
ENERGY USAGE AND BILLING REPORT
This report shows the statistics of Grid Consumption(kWh) and Electricity Bill on different time period (peak-to-valley) on daily/monthly/yearly basis.
energy consumption report in the three phase energy monitoring system
ENERGY CONSUMPTION AND BILL FORECAST
Our system can give you the Energy Consumption and Electricity Bill forecast on monthly basis by learning from your historical energy consumption and billing method you set.
forecast your energy consumption
ADVANCED ENERGY CONSUMPTION ANALYSIS REPORT
Monitor electricity usage by a three phase energy meter
- Home Automation
This 3 phase energy monitoring devices has supported many famous open source home automation platforms, such as Home Assistant, Openhab, NodeRED, Domoticz, IObroker etc.., more details please refer to
How to use 3 phase energy meter of IAMMETER in Home Assistant, Openhab, NodeRED, Domoticz, IObroker etc..
How to Utilize IAMMETER's Product on a 3rd Party Server or Open Source Platform
The "hidden" features in the firmware of the Wi-Fi energy meter
Home assistant energy meter
Mobile App && IAMMETER-Cloud
When you have the 3 phase energy meter of IAMMETER, you can also use the service of IAMMETER-cloud. It is a very powerful system, especially in solar PV monitoring and energy consumption management.
Visit the demo account of IAMMETER
Please note, there will be different effects when you click the above link in PC browser(effect of web system) or app browser(effect of the app)
For more information about 3 phase energy monitoring system and 3 phase wifi energy meter, please feel free to contact us!
If you are looking for a reliable energy monitoring ltd, please contact us.
